1 What it's about

Spirals with squares whose side lengths correspond to the Fibonacci numbers.

2 Fibonacci Squares

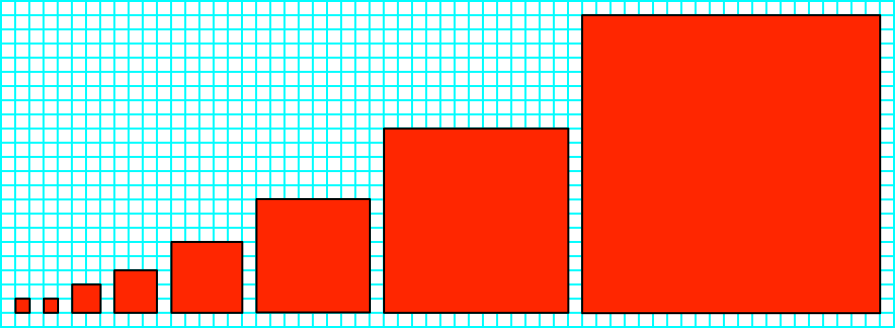

Fibonacci squares have side lengths corresponding to the Fibonacci sequence (Fig. 1)

1, 1, 2, 3, 5, 8, 13, 21, …

Fig. 1: Fibonacci Squares

3 The Classic Spiral

Figure 2 shows the classic spiral arrangement.

Fig. 2: Classic Arrangement

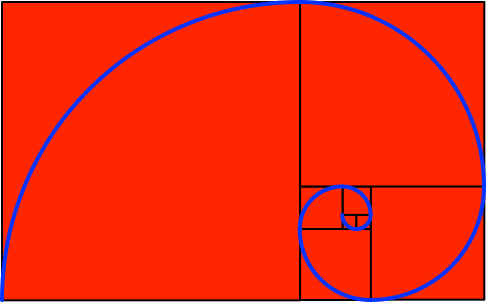

The spiral character can be made visible by drawing quarter circles (Fig. 3).

Fig. 3: Quarter Circles

The blue line is approximately a logarithmic spiral, but not exactly.

4 Sixfold Spiral

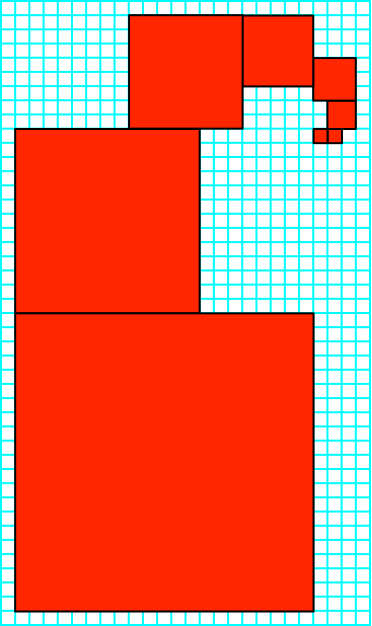

Figure 4 shows a different spiral arrangement of the Fibonacci squares.

Fig. 4: Different Arrangement

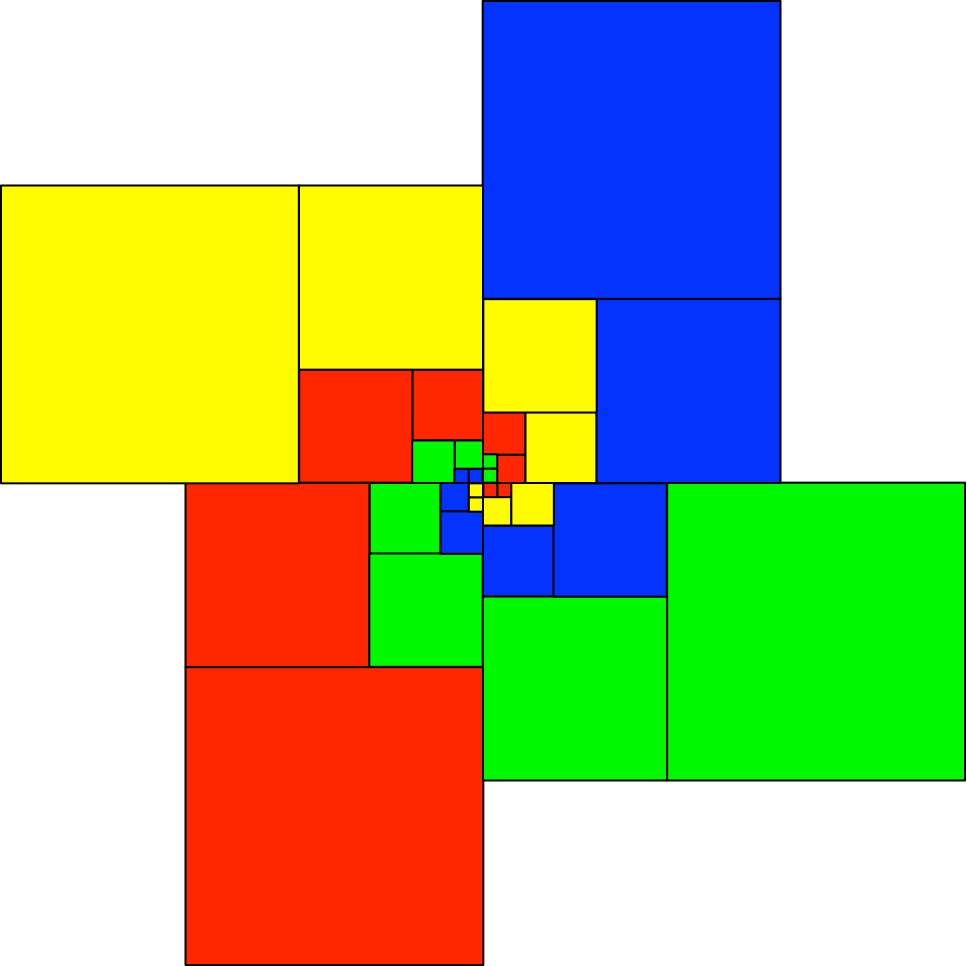

We can join four such spirals together, covering the entire area without overlapping (Fig. 5).

Fig. 5: Four Spirals

5 Animation

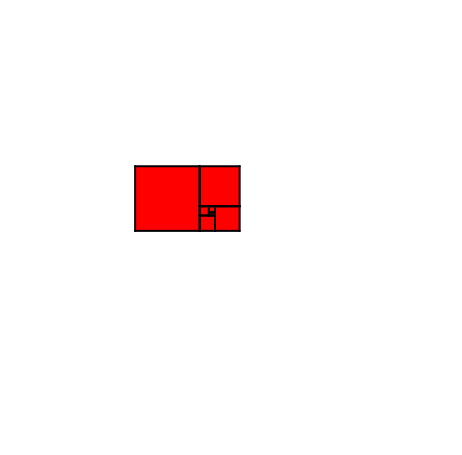

Figure 6 shows an animation with the classic arrangement (Fig. 2) as the starting point.

Fig. 6: From Landscape to Portrait Format

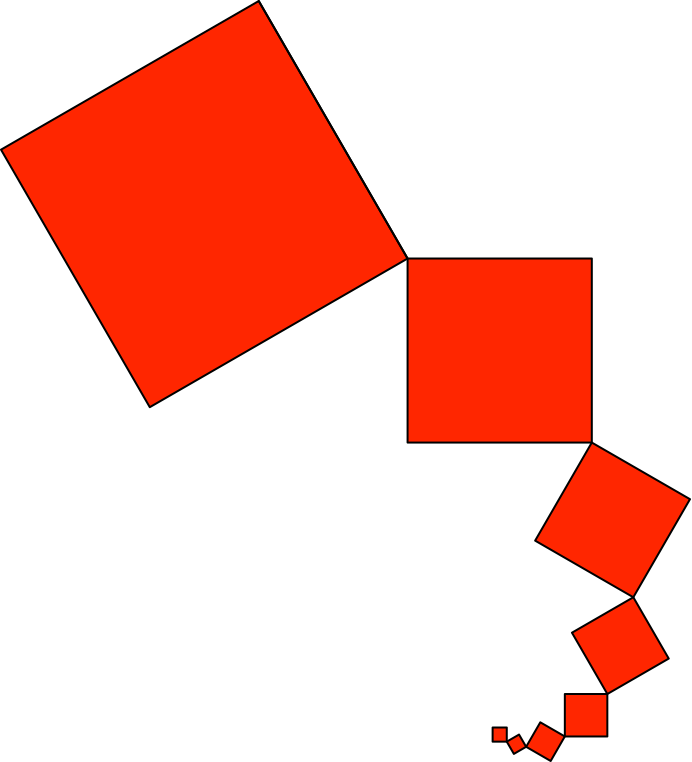

Figure 7 shows a special situation of the animation. The acute angles between two consecutive square sides measure 60°.

Fig. 7: Special Situation

6 Six Spirals

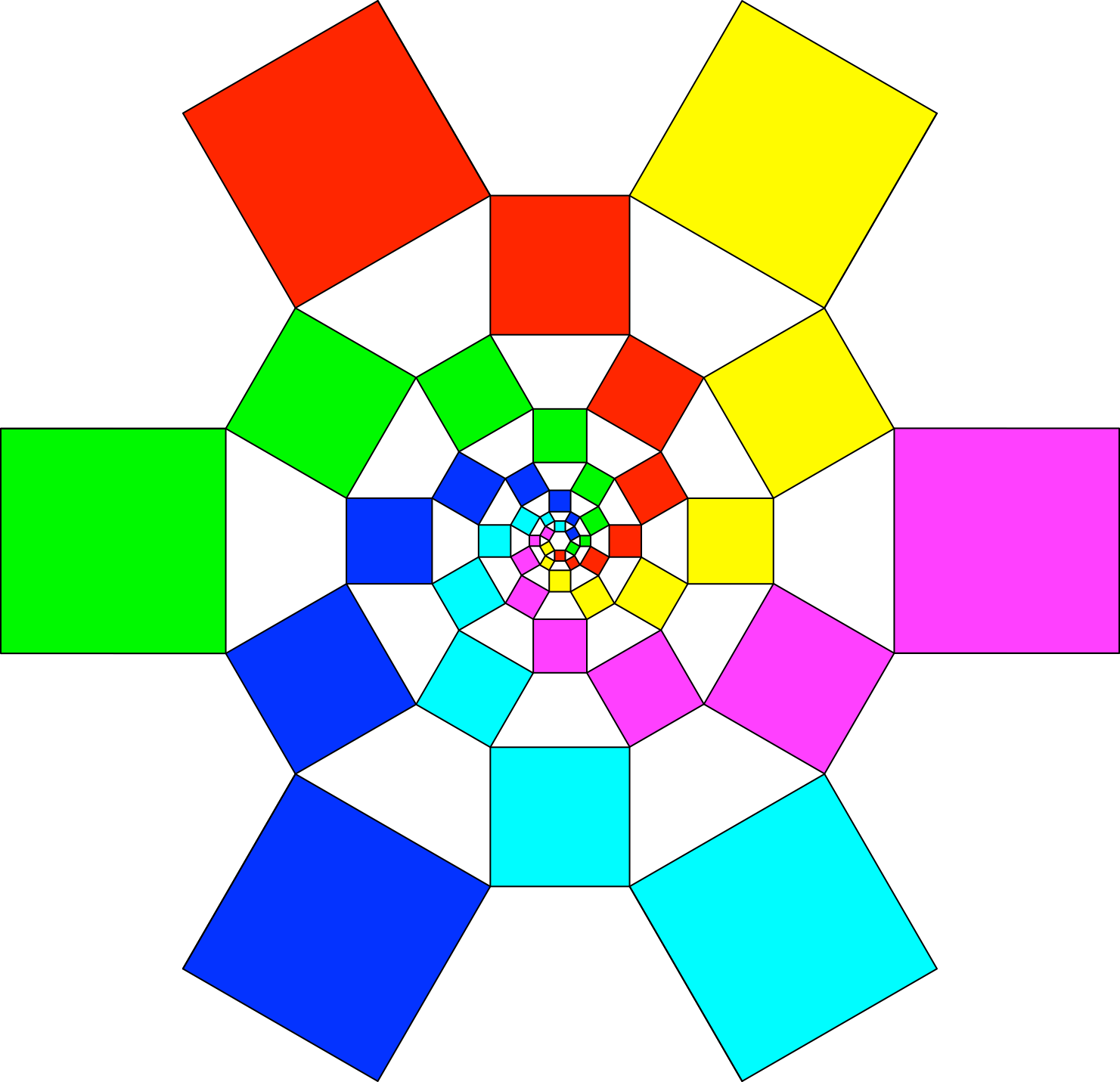

We can join six spirals together in the special situation (Fig. 7) (Fig. 8).

Fig. 8: Six Spirals

The spaces between the spirals are isosceles trapezoids whose sides correspond to three consecutive Fibonacci numbers.
